Purpose

This note describes the conceptual structure of overlay/underlay, the available network topology models, VPN isolation, routing protocols, and CPE deployment modes in Huawei SD-WAN.

Overlay vs. Underlay

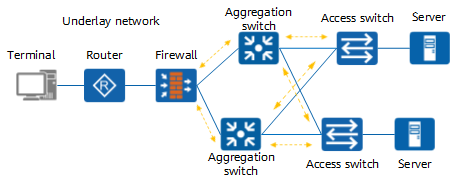

Underlay Network

The underlay network is the physical network infrastructure on which the overlay is built.

Consists of physical devices: switches, routers, firewalls, load balancers
Responsible for IP connectivity between sites (L2 or L3)
Underlay routing protocols: OSPF, IS-IS within an AS; BGP between ASes
MPLS-based networks also belong to the underlay
WAN types in underlay: MPLS, Internet, LTE/5G

Limitations of traditional underlay networks:

Hardware-based forwarding strongly tied to transmission paths
Configuration changes required when services change
No security guarantee for Internet-based communication
No on-demand network slicing
Complex multi-path forwarding

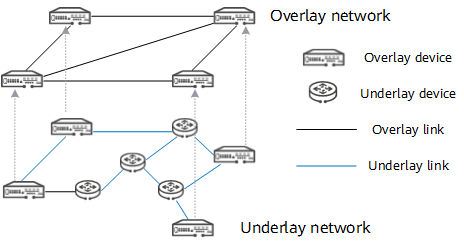

Overlay Network

The overlay network is a logical network built on top of the underlay.

Devices are connected via logical links, independent of the physical path
Tunnels are established between overlay endpoints (e.g., IPsec or GRE over IPsec)
The tunnel encapsulates the original IP packet with a new IP header + tunnel header
The overlay network is transparent to the underlay

SD-WAN EVPN

EVPN (Ethernet VPN) is the core control-plane technology of the SD-WAN overlay.

Extension of BGP for distributing MAC and IP routing information on the control plane (not the data plane)
Resolves the limitations of DSVPN, which depended on VPN instances for tunnel establishment
NHRP protocol is no longer required
BGP peer relationships are based on endpoints, not links
Edge sites only need to establish IBGP peer relationships with their RRs — no full-mesh between all edges
Keys are distributed centrally (no per-tunnel IKE negotiation required)
Control node and data node are decoupled: routing policies control the topology

EVPN advantage over DSVPN	Explanation
No NHRP dependency	Tunnel establishment via BGP signaling
No per-tunnel IKE negotiation	Keys centrally distributed by controller
Scalable	Edge sites only communicate with RRs
Flexible topologies	Hub-spoke, full-mesh, hybrid configurable via policy
Full Layer-2 reach	Cross-region L2 possible via EVPN MAC distribution

Sites and the RR Concept

Site Types

Type	Description
`Branch Site`	Branch office — CPE acts as edge gateway
`HQ Site`	Headquarters — often hub site
`DC Site`	Data center — often hub site
`Cloud Site`	Infrastructure on public cloud — vCPE (AR1000V / AR6700V-L)
`SD-WAN Site`	Site using SD-WAN technology, managed by iMaster NCE-Campus
